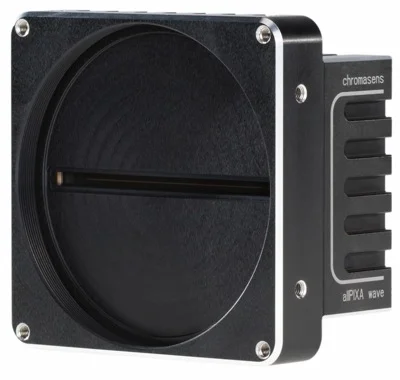

Introducing the world’s first quadlinear true color RGB line scan sensor in ultra-high resolution with up to 15360 pixels: the Chromasens allPIXA wave 15k camera. Deliver CCD image quality with CMOS performance, plus offer added system flexibility of increased scan line lengths up to 15k x 4 lines, along with line frequencies topping out at a maximum speed of 47.72 kHz at 850 megapixel/s.

Key Features

  • High-sensitivity trilinear CCD color sensor from 4096 x 3 pixels to 7300 x 3 pixels
  • Scan rates up to 60 kHz for standard configurations (up to 110 kHz in special OEM configurations)
  • 4k, 7.3k resolution
  • True RGB with excellent signal-to-noise ratio
  • Large 10μm CCD pixels for best image quality
  • Internal keystone correction for multi-angle positioning of the camera
  • Sub-pixel accuracy for registration error compensation (patented)

Chromasens Line Scan Camera allPIXA Specifications

TitleData
SensorQuadlinear CMOS line scan sensor
Number of pixels15360px x 4 lines
Active pixel size5,6µm x 5,6µm
Max. line rate15360px x 3 up to 18.43 kHz*
* Up to 47.72 kHz in ROI mode
Data format3 x 8/10/12 bit color
1 x 8/10/12 bit mono mode
Video outputCamera Link @ 85Mhz Full (80/64 bit) Medium, Base
Trigger modeFree run / external trigger
InterfacesCamera Link Full/Medium/Base
Power supply (Hirose)
External I/O (15 pin DSub)
RS232
CertificationsCE; FCC compliant; RoHS
Power supply12 – 24V DC +-10% < 19W
Operating Temperature0°C to 60°C, 32°F to 140°F (housing temp)
Dimensions102 x 100 x 58 mm (W x H x D))
Lens mountM95 x 1mm

Downloads & Accessories

DatasheetDownload
allPIXA wave Datasheet*.pdf
allPIXA External CablesIdentification Number
allPIXA Power Supply CableCP000430
allPIXA Power Supply CableCP000430
CameraLink Cables (industrial, several length, ect. )on request
