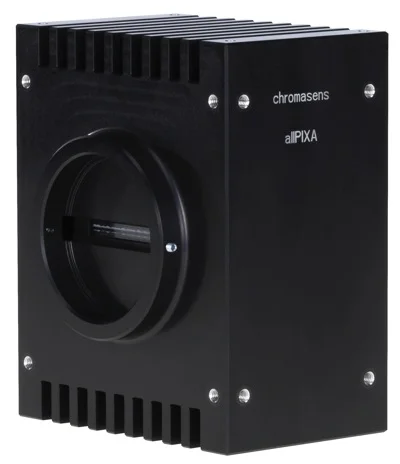

Chromasens Line Scan Camera allPIXA
The Chromasens allPIXA is an outstanding fast tri-linear CCD color line scan camera. It combines the outstanding image quality of CCD sensors with extremely high line rates. Achieving a variety in line lengths up to 3 x 7300 pixel and a maximum speed of a previously unattainable 110kHz results in maximum flexibility for your most demanding applications. In addition, the tri-linear CCD technology produces outstanding color fidelity for the best image quality.
Key Features
- High-sensitivity trilinear CCD color sensor from 4096 x 3 pixels to 7300 x 3 pixels
- Scan rates up to 60 kHz for standard configurations (up to 110 kHz in special OEM configurations)
- 4k, 7.3k resolution
- True RGB with excellent signal-to-noise ratio
- Large 10μm CCD pixels for best image quality
- Internal keystone correction for multi-angle positioning of the camera
- Sub-pixel accuracy for registration error compensation (patented)
Chromasens Line Scan Camera allPIXA Specifications
| Title | Data |
|---|---|
| Sensor type | Trilinear CCD color line scan sensor |
| Pixel size | 10 μm * 10 μm |
| Maximale Datenrate | 510 MByte/s |
| Maximum data rate | 4096 x 3 Pixel with up to 34,4 kHz (CP000383-A-4096-C-C) |
| Spectral sensitivity | 360-960 nm |
| Video signal | 3 x 8 bit color 1 x 8/10/12 bit mono mode |
| Video – Output | Camera Link @ 85MHz Medium, Base |
| Trigger modes | Free run / external trigger |
| Interfaces | CameraLink Base, Medium Power supply (6-pol. Hirose) External IO (15-pol. DSub) RS232 |
| Lens adaption | Lens adapter and tube system: F-Mount, C-Mount, M39x1/26″, M42x1, M72x0,75 |
| Certifications | CE; FCC compliant; RoHS |
| Supply voltage | 24 V DC +/- 10%; max. 16W |
| Temperature range | 0°C to 60°C, 32°F to 140°F (housing temp.) |
| Housing dimensions | L = 102 mm, H = 126 mm, D = 68 / 77 mm |
