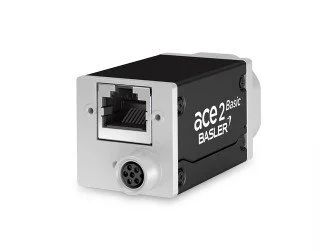

a2A2448-23gcBAS - Basler ace 2
The Basler a2A2448-23gcBAS GigE camera with the Sony IMX547 CMOS sensor delivers 23 frames per second at 5 MP resolution.
Specification
General Information | ||
|---|---|---|
| Order Number | 108419 | |
| Product Line | ace 2 Basic | |
| Net list priceFor larger quantities and individual prices, please use the request cart. | 619.00 EUR | |
| Est. Lead TimeEstimated lead times may vary. Please ask for the current availability and use the request cart. | approx. 2-3 weeks | |
Sensor | ||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX547 | |
| Shutter | Global Shutter | |
| Sensor Format | 1/1.8” | |
| Sensor Type | CMOS | |
| Sensor Size | 6.7 mm x 5.6 mm | |
| Resolution (HxV) | 2448 px x 2048 px | |
| Resolution | 5 MP | |
| Pixel Size (H x V) | 2.74 µm x 2.74 µm | |
| Frame Rate | 23 fps | |
| Mono/Color | Color | |
Camera Data | ||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 8/10/12 bits | |
| Synchronization |
| |
| Exposure Control |
| |
| Digital Input | 1 | |
| General Purpose I/O | 2 | |
| Power Supply |
| |
| Power Requirements (typical) | 2.9 W | |
Housing | ||
|---|---|---|
| Housing Type | Box | |
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm | |
| Lens Mount |
| |
| Operating Temperature | -10°C – 60°C | |
| Weight (typical) | 100g | |
Conformity | ||
|---|---|---|
| Conformity |
| |
