SCHNEIDER-KREUZNACH LARGE FORMAT LENSES

S ensors larger than 1.3″ require special lens solutions. With image circles ranging from 30 mm to 135 mm, these lenses cover even the largest sensors used in machine vision. Large-format lenses are specifically designed for use with large-format cameras in machine vision applications. These lenses are characterized by their ability to cover a larger image circle that matches the size of the camera’s image sensor format. In industrial applications, large-format lenses are often used when high-resolution imaging and precise detail capture are required.

HIGH PERFORMANCE FOR SENSORS UP TO 2“

THULITE

KEY FEATURES

  • 2″ (32 mm) max. Sensor size
  • 3 focal lengths: 35 mm, 50 mm and 75 mm
  • Very high resolution down to 2.4µm pixel size
  • Initial aperture: F2.8
  • M42 lens and TFL-Mount lens available
  • Covering a wide working distance range

THE STANDARD FOR LARGE SENSORS

EMERALD

KEY FEATURES

  • Image circle: 43.2 mm – 90 mm
  • 6 focal lengths: 28 mm – 135 mm
  • F-Mount lens and V48-Mount lens available
  • Covering a wide working distance range
  • Initial apertures: F2.2 – F5.6

SCHNEIDER-KREUZNACH LINE SCAN LENSES

They offer high-resolution imaging, compatibility with line illumination systems, tele centricity for accurate measurements, precise alignment capabilities, and robust construction. These lenses are essential for industrial imaging applications that require precise inspection, measurement or analysis of objects with high detail and accuracy.

THE BUDGET SOLUTION FOR HIGH-END LINE SCAN

ZIRCONIA

KEY FEATURES

  • Image circle: 62.5 mm – 82 mm
  • High resolution down to 5µm pixel size
  • Optimized for specific magnifications
  • 6 magnifications available: 0.1x – 2.0x
  • Version with beam splitter available
  • Best azimuth marking
  • V48-Mount for easy installation

THE STANDARD FOR 12K & 16K LINE SCAN

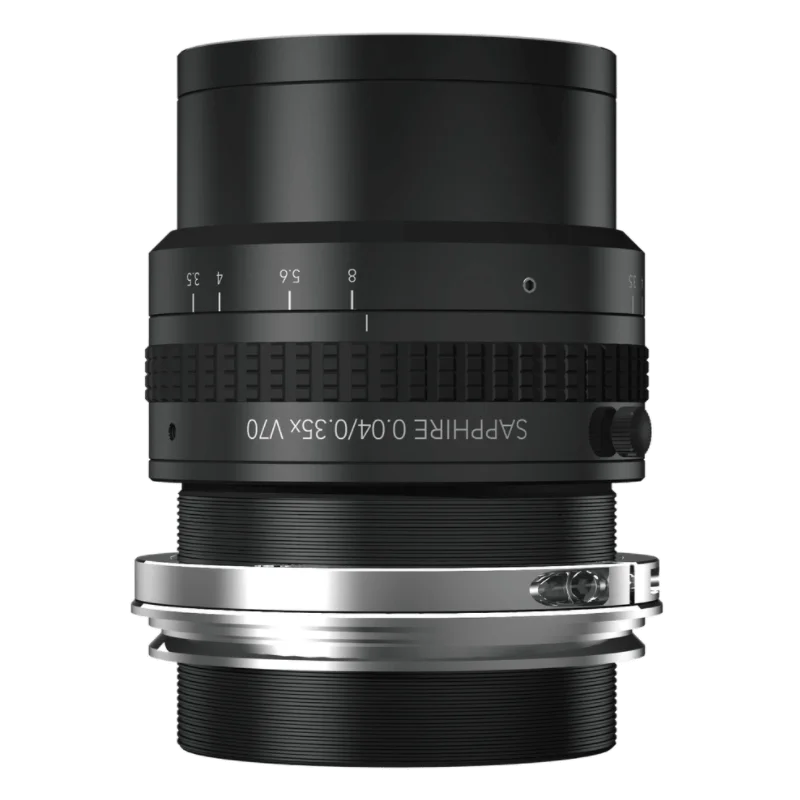

SAPPHIRE

KEY FEATURES

  • Extremely high resolution down to 3.5µm pixel size
  • Image circle: 62.5 mm – 82 mm
  • Optimized for specific magnifications
  • 11 magnifications available: 0.07x – 2.0x
  • Version with Beam splitter available
  • Best azimuth marking
  • V70-Mount for easy installation

THE ULTIMATE SOLUTION FOR HIGH MAGNIFICATION 12K & 16K LINE SCAN APPLICATION

DIAMOND

KEY FEATURES

  • Extremely high resolution down to 3.5µm pixel size
  • Image circle: 62.5 mm – 82 mm
  • Optimized for specific magnifications
  • 5 magnifications available: 2.6x – 5.2x
  • Versions with beam splitter available
  • Best azimuth marking
  • V-Mount for easy installation

FAST LENSES: ONYX

EXTREMELY FAST AND PERFECT FOR LOW LIGHT AND HIGH-SPEED APPLICATIONS

EXTREMELY FAST AND PERFECT FOR LOW LIGHT AND HIGH-SPEED APPLICATIONS

FAST LENSES: ONYX

KEY FEATURES

  • Extremely fast lens with F0.95
  • 1″ (16 mm) max. sensor size
  • C-Mount lens
  • Focal length: 25 mm
  • Version with fixed iris F0.95 available

SCHNEIDER-KREUZNACH SWIR LENSES

SWIR lenses, short for Short-Wave Infrared lenses, are specifically designed for industrial imaging applications that operate in the short-wave infrared spectrum. Our lenses are optimized for the shortwave infrared band 800-1800 nm. They can penetrate certain materials that are opaque to visible light. This makes SWIR lenses valuable in applications such as semiconductor inspection, food sorting and pharmaceutical quality control.

THE STANDARD SWIR LENS FOR 2/3"

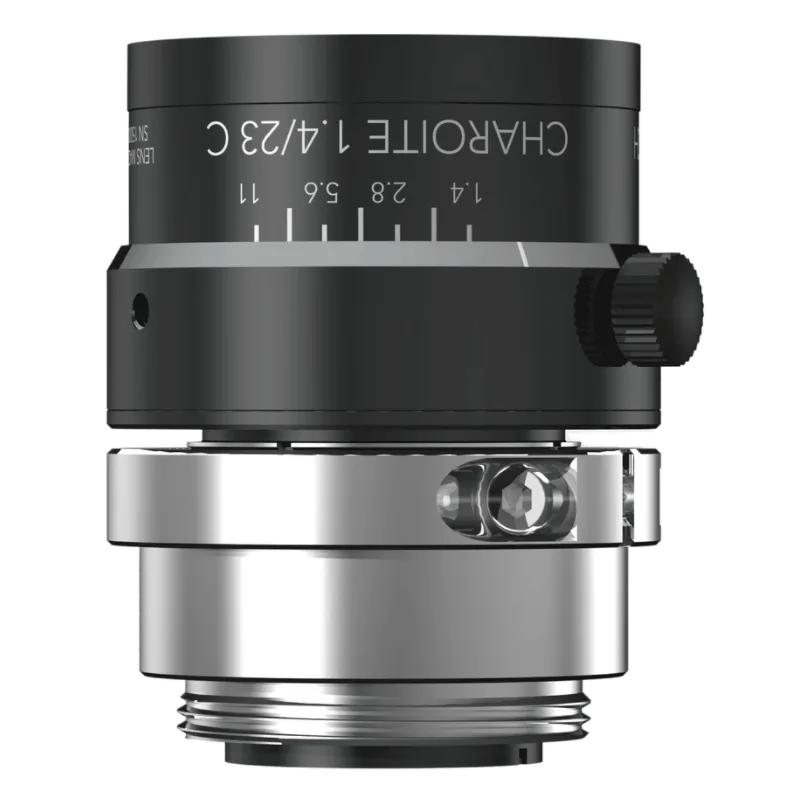

CHAROITE

KEY FEATURES

  • SWIR (800-1800 nm) optimized
  • 2/3″ (11 mm) max. sensor size
  • C-Mount lens
  • Focal length: 23 mm
  • Initial aperture: F1.4

THE BENCHMARK FOR SWIR

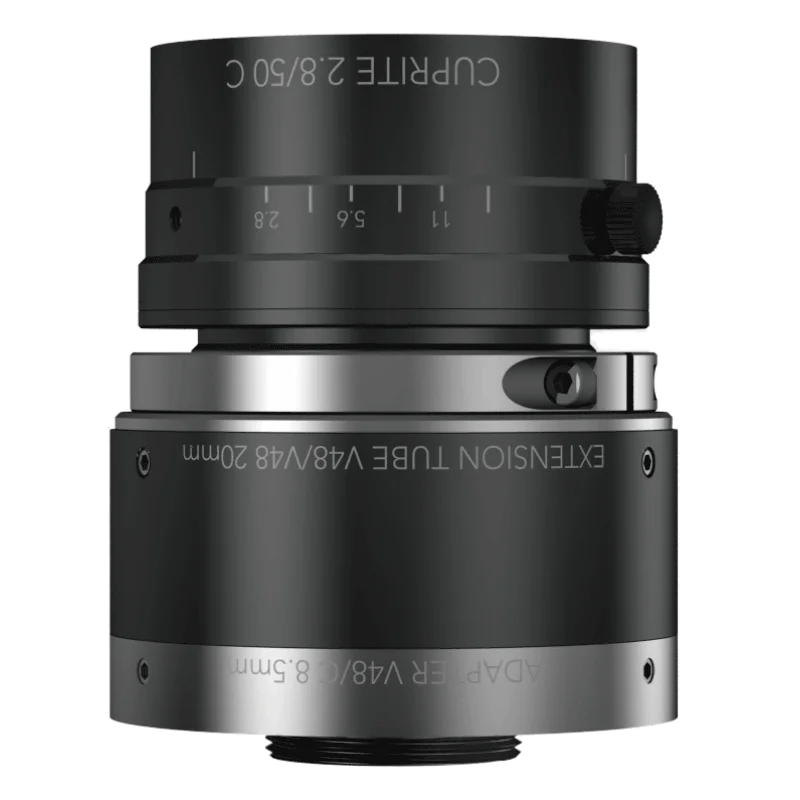

CUPRITE

KEY FEATURES

  • SWIR (800-1800 nm) optimized
  • 4 mm max. sensor size
  • Very high resolution down to 2.4µm pixel size
  • C-Mount lens and V48-Mount lens available
  • Focal length: 50 mm
  • Initial aperture: F2.8

THE FLEXIBLE SWIR SOLUTION

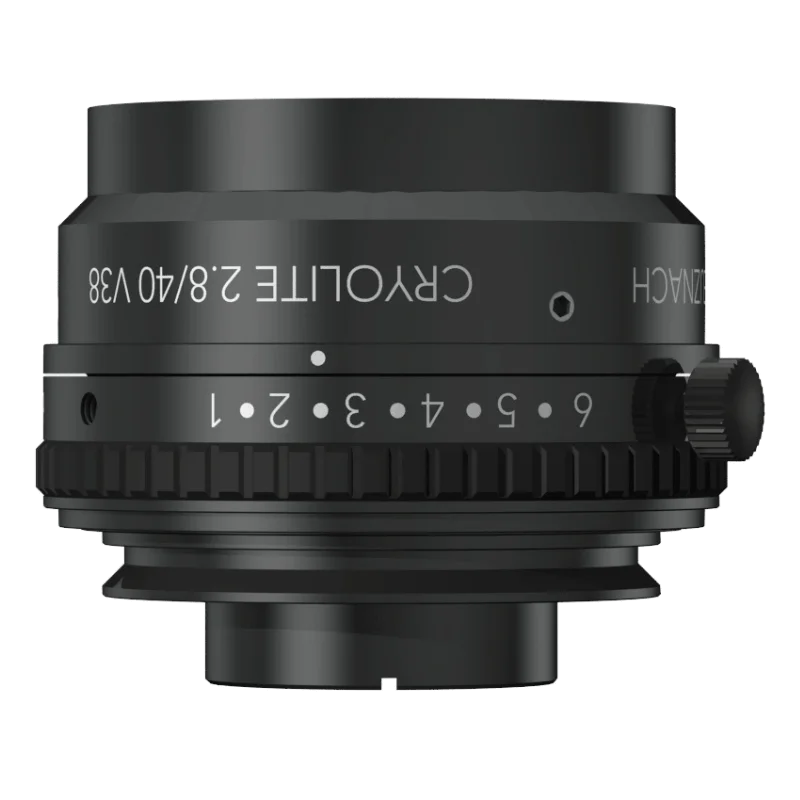

CRYOLITE

KEY FEATURES

  • SWIR (800-1800 nm) optimized
  • 2 mm max. sensor size
  • Focal length: 40 mm
  • Initial aperture: F2.8
  • Compatible to the V38-Mount System

SCHNEIDER-KREUZNACH V-MOUNT LENSES

This range of general purpose lenses, combined with a wide selection of accessories, can be used for a variety of applications. Whether near or far, large or small sensor, there is a lens and accessory combination for almost any application, regardless of the camera mount. Image circles range from 30 mm to 100 mm.

THE UNIVERSAL LENS SOLUTION

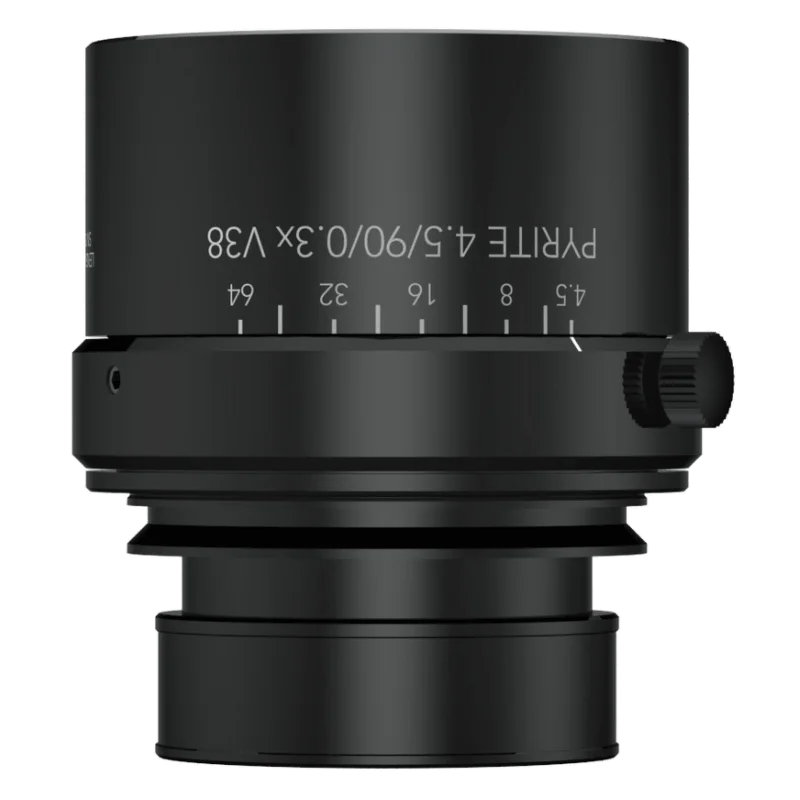

PYRITE

 KEY FEATURES

  • Image circle: 30 mm – 100 mm
  • 11 focal lengths: 28 mm – 120 mm
  • Covering a wide working distance range
  • Lenses for specific magnifications available
  • Very low distortion and high resolution
  • V38-Mount, compatible to the V38 mounting system
  • Initial apertures: F2.8 – F5.6

LIQUID FOCUS LENSES

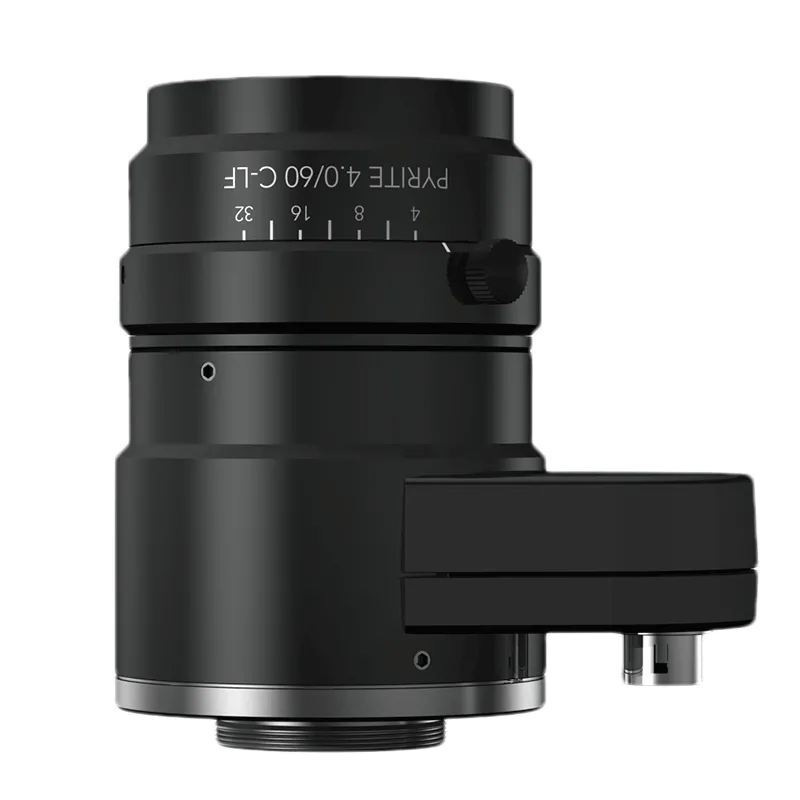

PYRITE LF

 KEY FEATURES

  • Focus tunable liquid lens included
  • Large working distance range
  • Fast focus within milliseconds
  • Large image circle

SCHNEIDER-KREUZNACH COMPACT LENSES

SCHNEIDER-KREUZNACH COMPACT LENSES

MAXIMUM PERFORMANCE UP TO 1.3"

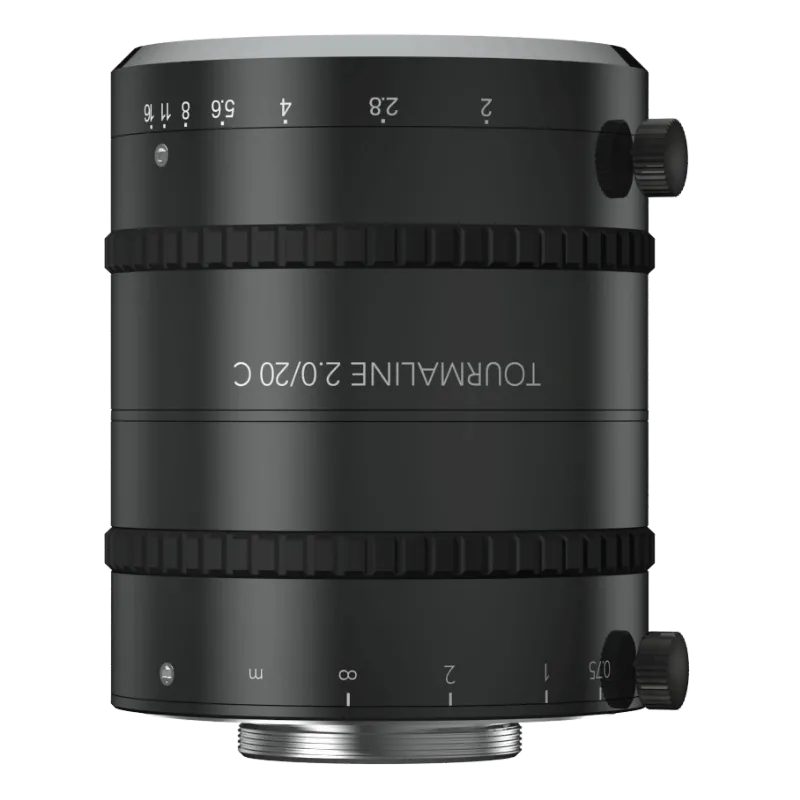

TOURMALINE

 KEY FEATURES

  • 1.3″ (24 mm) max. sensor size
  • Resolution down to 2.4µm pixel size
  • Low chief ray angle suits all SONY Pregius™ generations
  • 8 focal lengths: 16 mm – 50 mm
  • Initial aperture: F2 – F2.8

THE NEW MACHINE VISION STANDARD FOR UP TO 1.2"

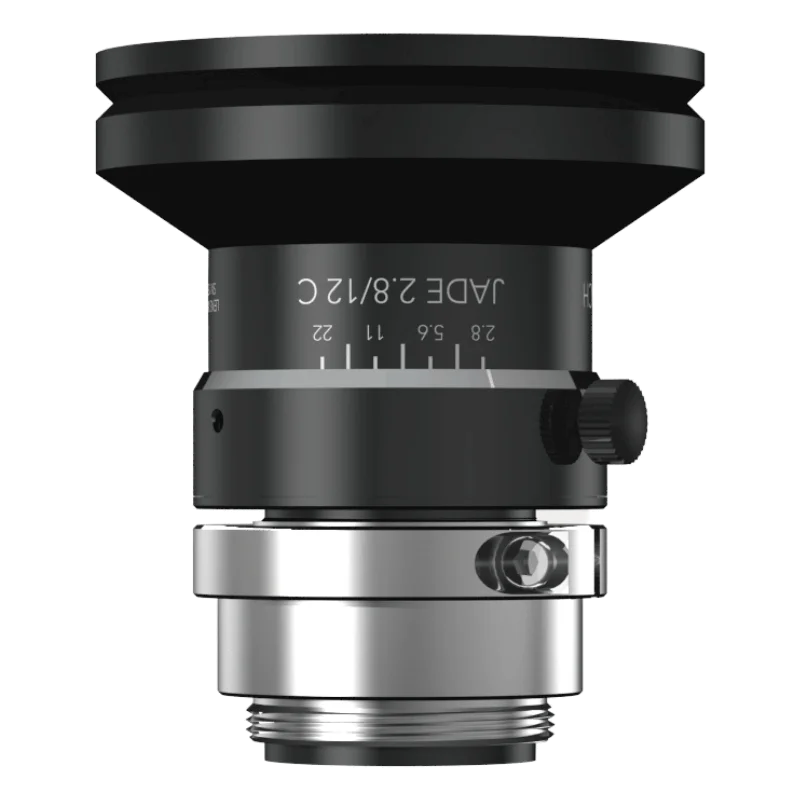

JADE

 KEY FEATURES

  • 2″ (19.3 mm) max. sensor size
  • Very high resolution down to 2.4µm pixel size
  • Low chief ray angle suitable for all SONY Pregius™ generations
  • C-Mount lens
  • 5 focal lengths: 12 mm – 50 mm
  • Initial aperture: F2.8

OPTICAL FILTERS

FOR INDUSTRIAL APPLICATIONS

  • Reproducibility and Reliability: Rely on the consistent performance of our filters for precise results, even after years.
  • Optical precision: Highest flatness and minimal wavefront deformation guarantee images without loss of quality.
  • Wide selection: Choose from a variety of filter types and coatings to meet your specific needs.
  • Flexible sizes: Our filters are available in a variety of diameters to suit your applications.
  • Robust Mechanics: Rely on metal mounts for a durable and reliable filtration solution.

BANDPASS FILTERS

An optical bandpass filter is used in the industry to selectively transmit light of a particular range of wavelengths while blocking others.

KEY FEATURES

  • Average Transmission 95 %: Achieve an impressive average transmission rate of 95 % for optimal light throughput.
  • Steep slopes: Take advantage of steep slopes that allow efficient isolation of specific wavelengths.
  • Wavelength Tolerance +/- 1 %: Experience exceptional accuracy with a wavelength tolerance of +/- 1 %, ensuring precise results.
  • Deep Blocking / High Optical Density: Our bandpass filters offer deep blocking and high optical density, effectively minimizing unwanted light leakage.

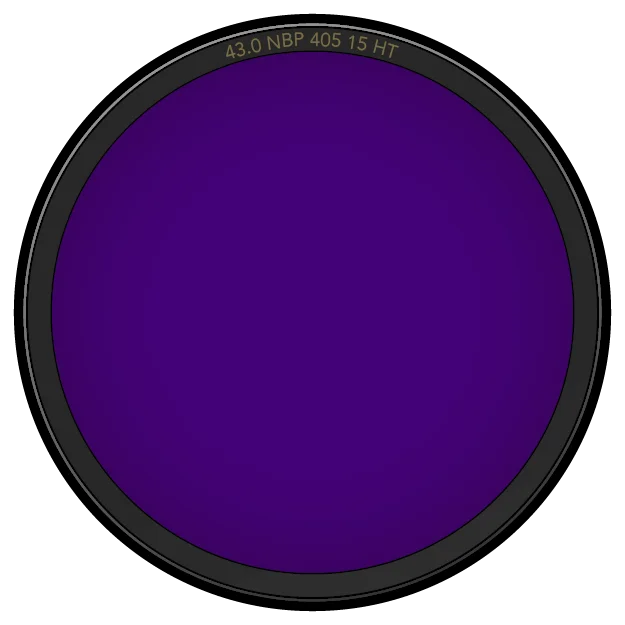

NARROW BANDPASS FILTERS

A narrowband filter is an interference filter that filters out only a very narrow spectrum of wavelengths from incident light, blocking the rest of the optical spectrum.

KEY FEATURES

  • Average Transmission 90 %: Achieve an impressive average transmission rate of 90 % for optimal light throughput.
  • Steep slopes: Take advantage of steep slopes that allow efficient isolation of specific wavelengths.
  • Wavelength Tolerance +/- 3 %: Experience exceptional accuracy with a wavelength tolerance of +/- 3 %, ensuring precise results.
  • Deep Blocking / High Optical Density: Our bandpass filters offer deep blocking and high optical density, effectively minimizing unwanted light leakage.

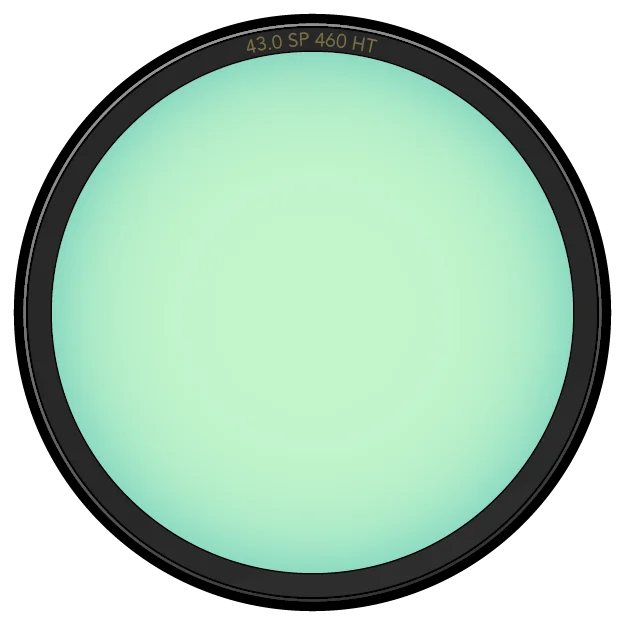

SHORTPASS FILTERS

A shortpass filter allows shorter wavelengths of light to pass through while blocking longer wavelengths. The filter is designed to transmit light that is below a specific wavelength cutoff, known as the filter’s “cutoff wavelength,” and to reflect or absorb light that is above this wavelength.

KEY FEATURES

  • Average Transmission 95 %: Achieve an impressive average transmission rate of 95 % for optimal light throughput.
  • Steep slopes: Take advantage of steep slopes that allow efficient isolation of specific wavelengths.
  • Wavelength Tolerance +/- 1 %: Experience exceptional accuracy with a wavelength tolerance of +/- 1 %, ensuring precise results.
  • Ultra Low Reflection: They allow shorter wavelengths of light, minimizing reflections for ultra-low reflection in optical systems.
  • Deep Blocking / High Optical Density: Our bandpass filters offer deep blocking and high optical density, effectively minimizing unwanted light leakage.

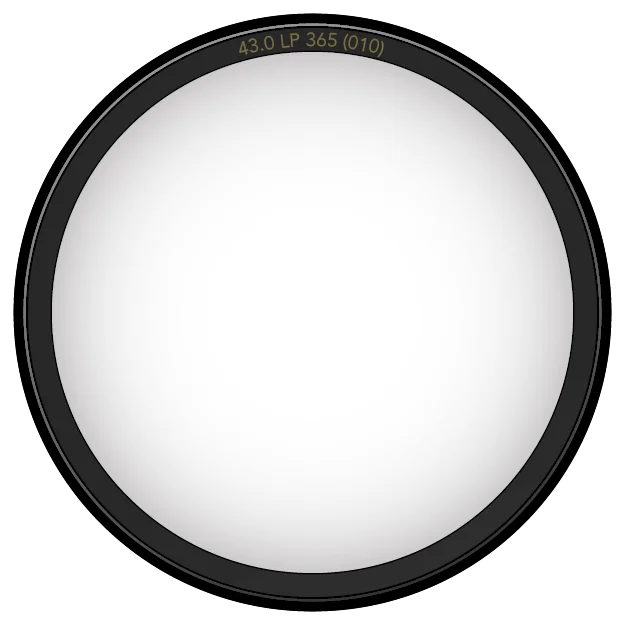

LONGPASS FILTERS

A longpass filter selectively transmits light with longer wavelengths while blocking light with shorter wavelengths. The filter is designed to transmit light that is above a specific wavelength cuton, known as the filter’s “cut on wavelength,” and to reflect or absorb light that is below this wavelength.

KEY FEATURES

  • Average Transmission 95 %: Achieve an impressive average transmission rate of 95 % for optimal light throughput.
  • Steep slopes: Take advantage of steep slopes that allow efficient isolation of specific wavelengths.
  • Wavelength Tolerance +/- 1 %: Experience exceptional accuracy with a wavelength tolerance of +/- 1 %, ensuring precise results.
  • Ultra Low Reflection: They minimize reflections, resulting in better performance of optical systems.
  • Deep Blocking / High Optical Density: Interfering wavelengths are blocked and unwanted stray light is minimized.

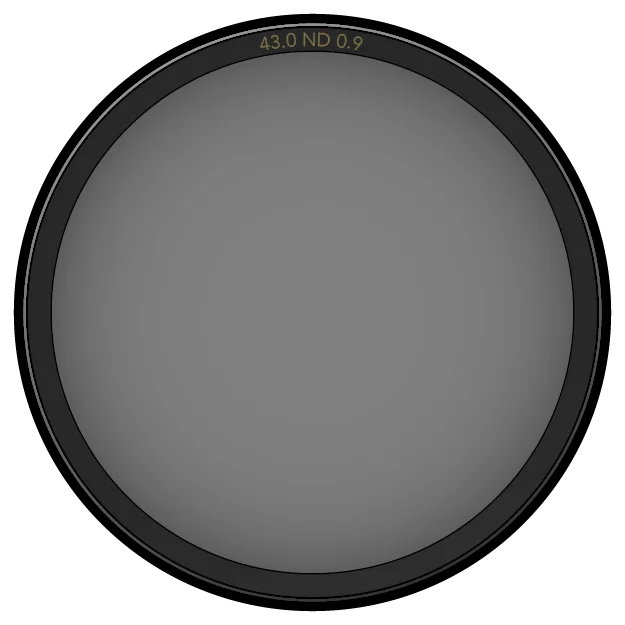

NEUTRAL DENSITY FILTERS

A neutral density (ND) filter reduces the intensity of light across the entire visible spectrum without altering its color or wavelength distribution.

KEY FEATURES

  • Insensitive to angle of incidence: Consistent performance regardless of light angle.
  • Decrease brightness without changing depth of field: Reduce light while maintaining depth of field.
  • Stackable, combine ND-filters to achieve optical density: Flexibly adjust light intensity.
  • Even attenuate avoid effects on color balance: Control brightness without color distortion.​​​​​​​

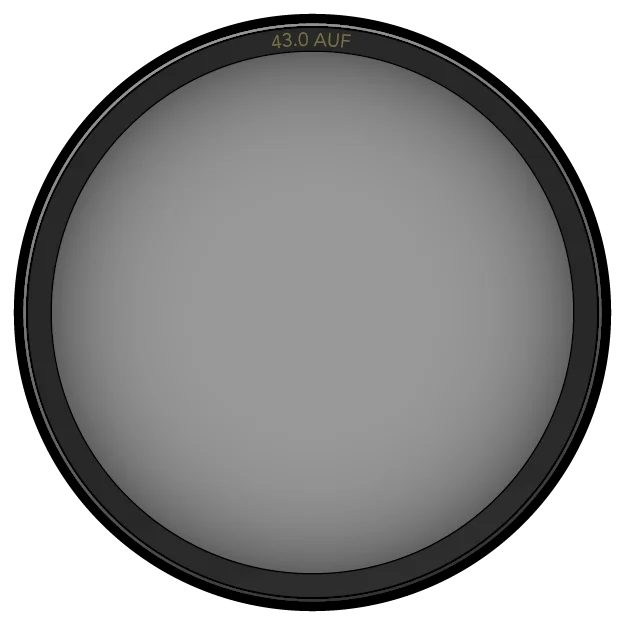

POLARIZER FILTERS

  • Reduce reflections: Minimize unwanted glare and reflections for clearer images.
  • Increase contrast: Enhance the distinction between different elements in an image.
  • High extinction ratio: Efficiently block unwanted light to achieve optimal polarization effects.
  • Pre-cut custom shapes for polarizing films on request: Tailor-made polarizer shapes for specific applications available upon request.

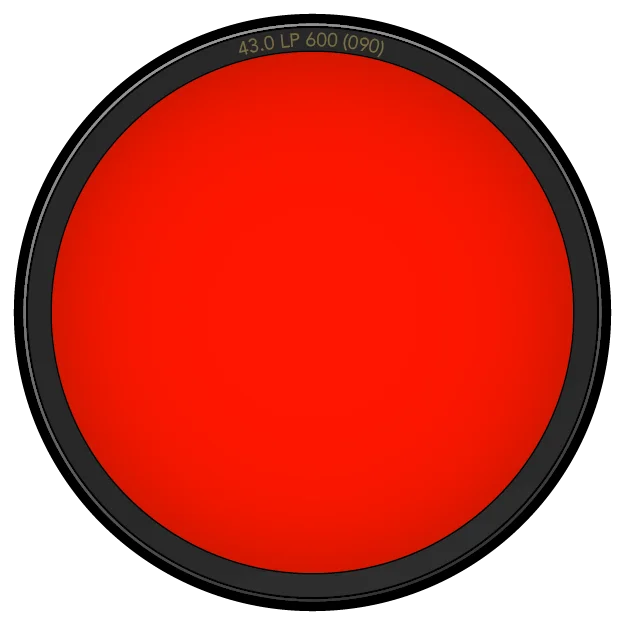

COLOR FILTERS

A color filter is an absorption filter that selectively transmits or reflects light of a specific color or range of colors while blocking or absorbing other colors.

KEY FEATURES

  • Insensitive to angle of incidence: Maintain consistent color effects at different viewing angles.
  • Large clear aperture (CA), absence of vignetting: Allow more light to pass through without darkening at corners.
  • Improve contrast: Improve differentiation between colors and elements.
  • Isolate colors: Selectively enhance or isolate specific colors to create distinct visual effects.

UV-CUT FILTERS & IR-CUT FILTERS

PROTECT LENSES AND SENSORS FROM DIRT AND EXTERNAL INFLUENCES

They reduce the spectrum reaching the sensor to the visible range by blocking the UV light and IR light.

KEY FEATURES

  • High transmission: Allow significant amounts of desired light while blocking UV or IR.
  • High reproducibility: Maintain consistent performance across multiple units.
  • Cost-Effective protection of sensitive equipment: Economically shield sensitive components from harmful UV or IR radiation.
  • Can also be used as a protective filter: Protect your equipment from dust and dirt.
