a2A2448-75ucBAS - Basler ace 2

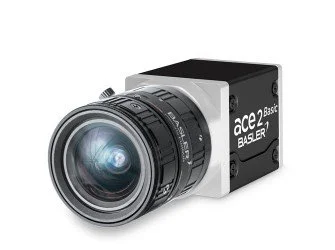

The Basler a2A2448-75ucBAS USB3.0 camera with the Sony IMX547 CMOS sensor delivers 75 frames per second at 5 MP resolution.

Specification

General Information

 Order Number108417
 Product Lineace 2 Basic
 Net list priceFor larger quantities and individual prices, please use the request cart.629.00 EUR
 Est. Lead TimeEstimated lead times may vary. Please ask for the current availability and use the request cart.approx. 2-3 weeks

Sensor

 Sensor VendorSony
 SensorIMX547
 ShutterGlobal Shutter
 Sensor Format1/1.8”
 Sensor TypeCMOS
 Sensor Size6.7 mm x 5.6 mm
 Resolution (HxV)2448 px x 2048 px
 Resolution5 MP
 Pixel Size (H x V)2.74 µm x 2.74 µm
 Frame Rate75 fps
 Mono/ColorColor

Camera Data

 InterfaceUSB 3.0
 Pixel Bit Depth8/10/12 bits
 Synchronization
  • free-run
  • hardware trigger
  • software trigger
 Exposure Control
  • programmable via the camera API
  • hardware trigger
 Digital Input1
 General Purpose I/O2
 Power Supply
  • Via USB 3.0 interface
 Power Requirements (typical)3.1 W

Housing

 Housing TypeBox
 Housing Size (L x W x H)42.8 mm x 29 mm x 29 mm
 Lens Mount
  • C-mount
 Operating Temperature-10°C – 60°C
 Weight (typical)85g

Conformity

 Conformity
  • RoHS
  • CE
  • IP30
  • FCC
  • GenICam
  • USB3 Vision
  • EAC
  • KC
  • UL
