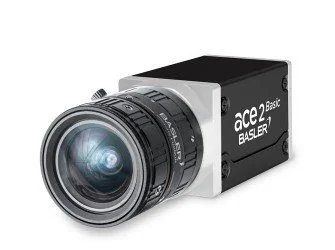

a2A2448-75umBAS - Basler ace 2
The Basler a2A2448-75umBAS USB3.0 camera with the Sony IMX547 CMOS sensor delivers 75 frames per second at 5 MP resolution.
Specification
General Information | ||
|---|---|---|
| Order Number | 108416 | |
| Product Line | ace 2 Basic | |
| Net list priceFor larger quantities and individual prices, please use the request cart. | 599.00 EUR | |
| Est. Lead TimeEstimated lead times may vary. Please ask for the current availability and use the request cart. | approx. 2-3 weeks | |
Sensor | ||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX547 | |
| Shutter | Global Shutter | |
| Sensor Format | 1/1.8” | |
| Sensor Type | CMOS | |
| Sensor Size | 6.7 mm x 5.6 mm | |
| Resolution (HxV) | 2448 px x 2048 px | |
| Resolution | 5 MP | |
| Pixel Size (H x V) | 2.74 µm x 2.74 µm | |
| Frame Rate | 75 fps | |
| Mono/Color | Mono | |
EMVA Data | ||
|---|---|---|
| EMVA Quantum Efficiency (typical) | 65.7 % | |
| Dark Noise (typical) | 2.4 e¯ | |
| Saturation Capacity (typical) | 9.7 ke¯ | |
| Dynamic Range (typical) | 70.1 dB | |
| Signal-to-Noise Ratio (typical) | 39.9 dB | |
Camera Data | ||
|---|---|---|
| Interface | USB 3.0 | |
| Pixel Bit Depth | 8/10/12 bits | |
| Synchronization |
| |
| Exposure Control |
| |
| Digital Input | 1 | |
| General Purpose I/O | 2 | |
| Power Supply |
| |
| Power Requirements (typical) | 2.8 W | |
Housing | ||
|---|---|---|
| Housing Type | Box | |
| Housing Size (L x W x H) | 42.8 mm x 29 mm x 29 mm | |
| Lens Mount |
| |
| Operating Temperature | -10°C – 60°C | |
| Weight (typical) | 85g | |
Conformity | ||
|---|---|---|
| Conformity |
| |
