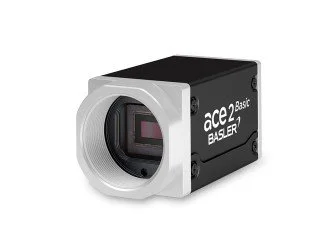

a2A2590-22gmBAS - Basler ace 2

The Basler a2A2590-22gmBAS GigE camera with the Sony IMX334ROI CMOS sensor delivers 22 frames per second at 5 MP resolution.


General Information

 Order Number108030
 Product Lineace 2 Basic
 Net list priceFor larger quantities and individual prices, please use the request cart.269.00 EUR
 Est. Lead TimeEstimated lead times may vary. Please ask for the current availability and use the request cart.approx. 2-3 weeks


 Sensor VendorSony
 ShutterRolling Shutter
 Sensor Format1/2.8”
 Sensor TypeCMOS
 Sensor Size5.2 mm x 3.9 mm
 Resolution (HxV)2592 px x 1944 px
 Resolution5 MP
 Pixel Size (H x V)2 µm x 2 µm
 Frame Rate22 fps


 EMVA Quantum Efficiency (typical)72.9 %
 Dark Noise (typical)2.0 e¯
 Saturation Capacity (typical)7.2 ke¯
 Dynamic Range (typical)69.2 dB
 Signal-to-Noise Ratio (typical)38.6 dB

Camera Data

 Pixel Bit Depth8/10/12 bits
  • free-run
  • hardware trigger
  • software trigger
 Exposure Control
  • programmable via the camera API
  • hardware trigger
 Digital Input1
 General Purpose I/O2
 Power Supply
  • PoE or 12-24 VDC
 Power Requirements (typical)2.5 W


 Housing TypeBox
 Housing Size (L x W x H)55.5 mm x 29 mm x 29 mm
 Lens Mount
  • C-mount
 Operating Temperature-10°C – 60°C
 Weight (typical)100g


  • RoHS
  • CE
  • IP30
  • GigE Vision 2.0
  • FCC
  • GenICam
  • EAC
  • UL
