Frame Grabber

Control center of the vision system

Frame grabbers are one of the key components for robust, high-speed image acquisition and signal control. At the core of the image acquisition boards are FPGA processors that ensure extensive image data processing in real time.

Enquire Now

Reduced CPU load

Thanks to efficient image preprocessing, which creates lower data volume

Bandwidths up to 62,5 Gbps

For joint processing of high data rates and high resolutions

Real-time image processing

Thanks to image and trigger processing with deterministic latencies

Customizable

Individually programmable with our frame grabber services

frame grabber series

imaFlex – programmable CXP-12 frame grabbers

imaFlex CXP-12 Quad and imaFlex Penta are powerful, individually programmable CoaXPress 2.0 frame grabbers for high-end vision applications.

  • Graphical FPGA programming via VisualApplets for application-specific real-time processing of image data

  • Services for individual customization of the frame grabber

  • With four or five CXP-12 channels

  • Up to 62.5 Gbps bandwidth

  • Multi-frame grabber and multi-camera support

  • imaFlex Penta ideal for 3D AOI applications in the electronics inspection

imaWorx CXP-12 Quad is a CoaXPress 2.0 frame grabber for high-speed image acquisition in demanding machine vision applications.

  • With four CXP-12 channels

  • Up to 50 Gbps bandwidth

  • Power over CoaXPress

  • Multi-frame grabber and multi-camera support

imaWorx - CXP-12 image acquisition frame grabber

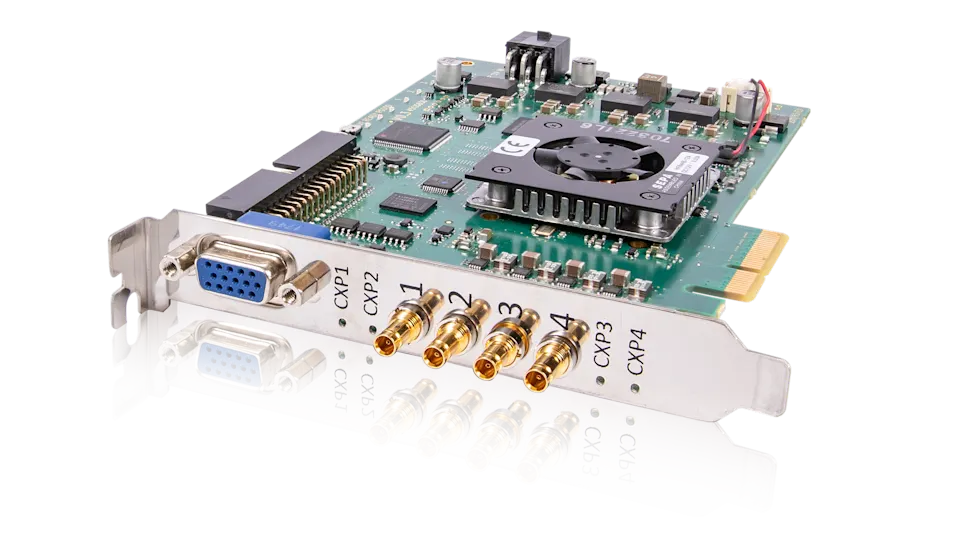

microEnable 5 marathon - powerful frame grabbers for a versatile use

The marathon frame grabbers are powerful image acquisition and pre-processing cards with Camera Link or CXP-6 interfaces for a wide range of applications.

  • Graphical FPGA programming via VisualApplets for application-specific real-time processing of image data

  • Services for individual customization of the frame grabber

  • With four CXP-6 or two Camera Link channels

  • Up to 25 Gbps bandwidth

Image preprocessing on the frame grabber

Image preprocessing streamlines image processing systems

Image preprocessing on the frame grabber’s FPGA optimizes the image data in real time for the respective application. The optimized image data is transferred securely and without loss of individual images for subsequent image processing. This improves the performance of the application, simplifies further processing, and reduces the CPU load on the host PC.

FPGA programming with VisualApplets

VisualApplets allows frame grabber FPGAs to be programmed using an intuitive graphical user interface without hardware programming.

  • A fast and cost-effective path to the image processing solution with precisely synchronized components

  • Integrated operator library for basic image processing tasks

  • Image-based simulation of the image processing pipeline for a quick and easy path from idea to solution

Services for customized frame grabbers

We can provide you with various service packages ranging from support to the development of a project-specific vision system:

  • Consulting and support for specific project tasks/applications

  • Programming our frame grabbers to meet the requirements of your application

  • Testing for error-free interaction of all Vision hardware from the concept phase onwards

With us as your partner, you benefit from our many years of expertise in the field of image preprocessing with frame grabbers.

HDR for racer 2 L line scan cameras

Large differences in brightness often occur in line scan applications. As line scan sensors do not always capture the brightest and darkest areas of the image ( i.e. the full dynamic range), image content can be lost. Our vision system – consisting of a racer 2 L line scan camera, programmable ImaFlex frame grabber, and HDR applet – solves this problem.
