C Mount Lenses

For sensor sizes up to 1.5 inches

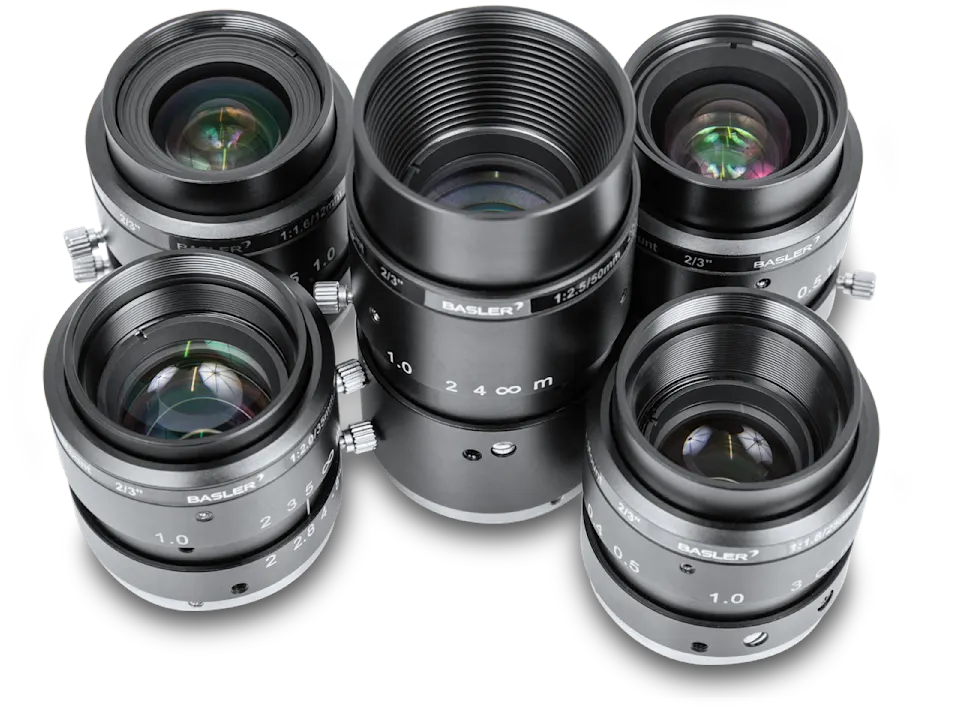

C-mount lenses are characterized by their high image quality, compact design, and flexibility.

All about C-mount lenses

In order to connect a lens to a camera, we need a threaded connection—the mount. Mount sizes are standardized and are indicated by letters, with the C-mount being the most common type used for machine vision cameras. It is used for sensor diagonals measuring up to 20 mm, or 1.5 inches. The thread has a nominal diameter of 1 inch (24.5 mm) and a pitch of 1/32 inches. The flange focal distance of this lens mount is 17.526 mm (0.69 inch).

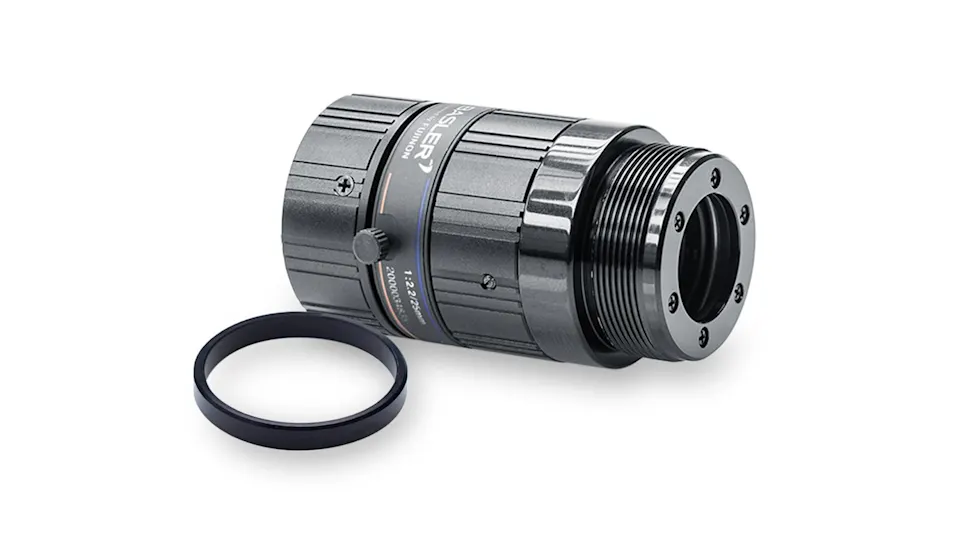

Adapter rings expand application areas

Adapter rings can allow you to connect C-mount lenses to CS-mount cameras, broadening the application reach of the equipment. Note that CS-mount lenses cannot be connected to C-mount cameras due to the shorter flange focal distance.

C Mount Lenses

Basler

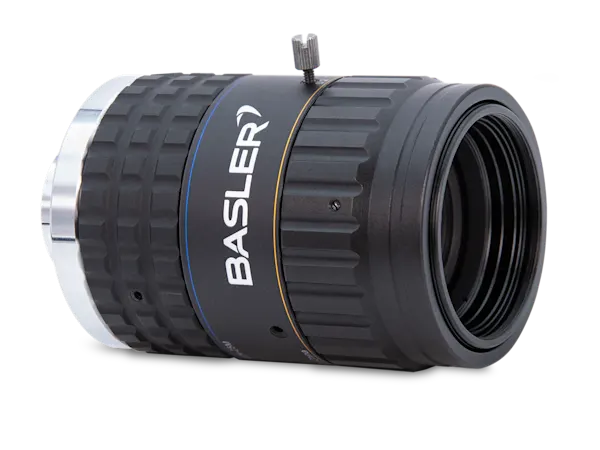

C12-5024-25M

  • Mount- C-mount
  • Focal Length - 50 mm
  • Min. Working Distance- 200 mm

Basler
C12-3524-25M

  • Mount- C-mount
  • Focal Length - 35 mm
  • Min. Working Distance- 150 mm

Basler

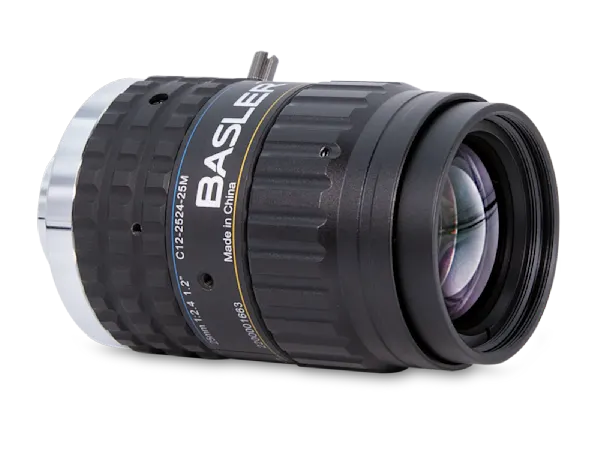

C12-2524-25M

  • Mount- C-mount
  • Focal Length - 25 mm
  • Min. Working Distance- 150 mm

Basler

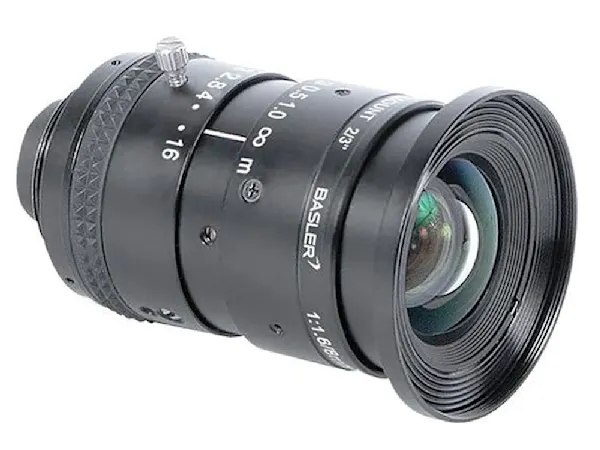

C23-0816-2M f8mm

  • Mount- C-mount
  • Focal Length - 8.6 mm
  • Min. Working Distance- 250 mm

Basler

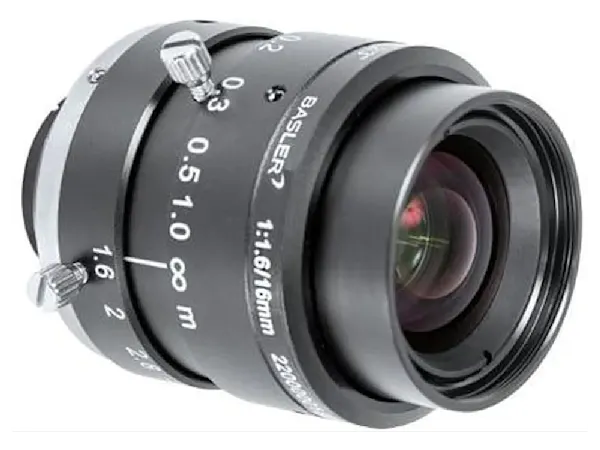

C23-1616-2M f16mm

  • Mount- C-mount
  • Focal Length - 16 mm
  • Min. Working Distance- 200 mm
