EASY-TO-USE OPTICAL STRAIN AND DISPLACEMENT MEASUREMENT WITH HIGH ACCURACY
OPTICAL MEASUREMENT OF DEFORMATION, STRAIN, DISPLACEMENT, DEFLECTION, AND MOTION TRACKING
OPTICAL EXTENSOMETER
FOR EFFORTLESS ASSESSMENT OF MECHANICAL PROPERTIES COMPLYING WITH INDUSTRIAL STANDARDS
It operate as optical strain sensors and used as accessories for Universal Testing Machines (UTMs)
- Quick setup and alignment (fast results)
- High robustness on natural surfaces
- Wide range of measuring tools
- Real-time measurement
- Modularity and expandability
- QUICK Technical support directly from the manufacturer

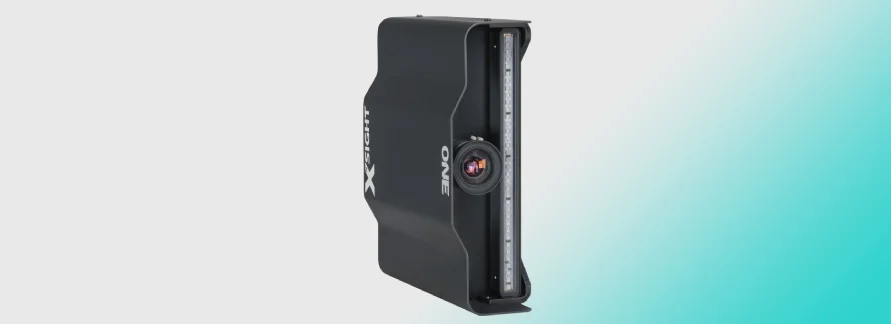

ONE SERIES OPTICAL EXTENSOMETER
ONE series optical extensometers demonstrate state-of-the-art digital correlation technology. All ONE measuring systems deliver accurate and precise strain measurement readings.
Available from 2.3 Mp to 9 Mp and have USB 3.0 connections.
- An all-in-one solution
- Stackable
- Lens and LED light included
- Automatic light ON/OFF
- Axial or Transversal Alpha software license included
- One calibration grid
- All cabling included
ONE-ROD OPTICAL EXTENSOMETER
ONE-ROD is an easy-to-use optical extensometer optimized for tensile testing of reinforcing steel. The unique ITT functionality of X-Sight’s DIC software allows for the measurement of specimens with an oxide or rust layer falling off significantly.
Specification
- 2 × 2.3 MP industrial cameras
- Lighting: 500 mm LED light
- Field of view: 550 × 100 mm
- Sampling rate: > 40 Hz

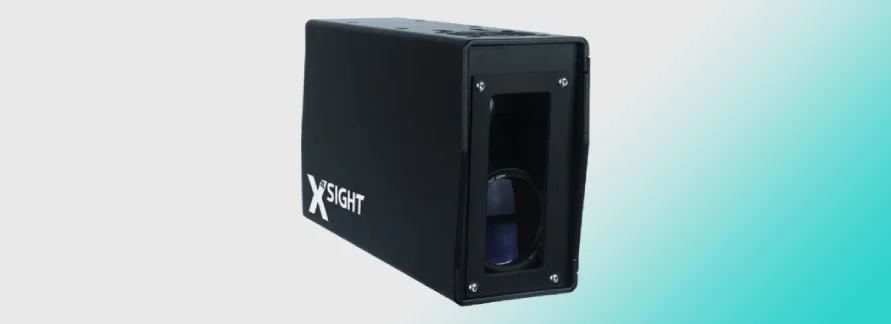

HT OPTICAL EXTENSOMETER
HT is a professional optical extensometer for high-temperature applications suitable for temperatures ranging from ambient temperature up to 1400 °C.
Specification
- Field of View: 47 × 41 mm
- Sampling Rate: 75 – 200 Hz
- Axial and radial neck detection
- Lighting: Auto-switching monochromatic light
