Picking an industrial camera might seem like a minor detail in a larger automation project, but it’s far from it. The right camera is crucial for reliable operation, accurate data acquisition, and ultimately, the success of your application. Choosing the wrong one can led to costly rework, downtime, and compromised performance. This post explores the key factors to consider when selecting an industrial camera, empowering you to make an informed decision.
Understanding Your Application: The First Step
Before diving into the technical specifications, clearly define your application’s requirements. What are you trying to achieve with the camera? Are you inspecting products for defects, guiding a robotic arm, or monitoring a process? The specific task dictates the necessary camera features. For example, high-speed imaging is crucial for capturing fast-moving objects, while high resolution is essential for detailed inspection.
Key Camera Specifications: Decoding the Jargon
Understanding the various camera specifications is critical for making the right choice. Here’s a breakdown of the most important ones
Sensor Type and Size: The Heart of the Camera
CCD (Charge-Coupled Device)
Known for their high image quality and accuracy, CCD sensors are excellent for applications demanding precise measurements and color reproduction.
CMOS (Complementary Metal-Oxide-Semiconductor)
CMOS sensors offer faster frame rates and lower power consumption, making them suitable for high-speed applications and portable devices.
Sensor Size
Larger sensors typically offer better light sensitivity and dynamic range, resulting in higher image quality, particularly in low-light conditions.
Resolution: Capturing the Details
Resolution refers to the number of pixels in the image. Higher resolution means more detail but also larger file sizes and potentially slower frame rates. Choose a resolution that balances the required level of detail with the processing capabilities of your system.
Frame Rate: Keeping Up with the Action
Frame rate is the number of images captured per second. For fast-moving objects or processes, a higher frame rate is essential to avoid motion blur.
Interface: Connecting the Camera
The interface determines how the camera communicates with your system. Common interfaces include:

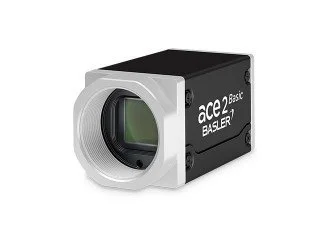

GigE Vision
A widely used standard offering high bandwidth and cable lengths.

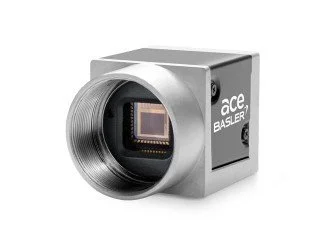

USB 3.0
A versatile and readily available interface providing good bandwidth.
Camera Link
A high-speed interface designed for industrial applications.
Lens Selection: Focusing on the Target
The lens is just as important as the camera itself. Consider the following factors
Focal Length
Determines the field of view. A shorter focal length provides a wider view, while a longer focal length magnifies the image.
Aperture
Controls the amount of light entering the lens. A wider aperture allows more light, improving performance in low-light conditions.
Environmental Considerations: Ensuring Reliability
Industrial environments can be harsh. Consider the operating temperature, humidity, and presence of dust or debris when selecting a camera. Choose a camera with appropriate ingress protection (IP) rating to ensure reliable operation in challenging conditions.
Budget and Integration: Practical Considerations
While performance is paramount, budget and integration efforts are also important. Consider the total cost of ownership, including the camera, lens, cables, and software. Also, evaluate the ease of integration with your existing system.
Conclusion
Choosing the right industrial camera requires careful consideration of your application’s requirements, the camera’s technical specifications, environmental factors, and budget constraints. By understanding these factors and carefully evaluating your options, you can select a camera that delivers the performance and reliability you need for your industrial application. Taking the time to make an informed decision now will save you time, money, and headaches down the road.
